P807003-028-30 6IN EDGELIT LED TRIM JBOX

Part Number: P807003-028-30 / Vendor ID #: 667

P807003-028-30 6IN EDGELIT LED TRIM JBOX

by Progress

$41.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Dimensions

Height: 1.00"

Width: 7.17"

Length: 7.17"

Info & Guides

Included Items

Product Overview

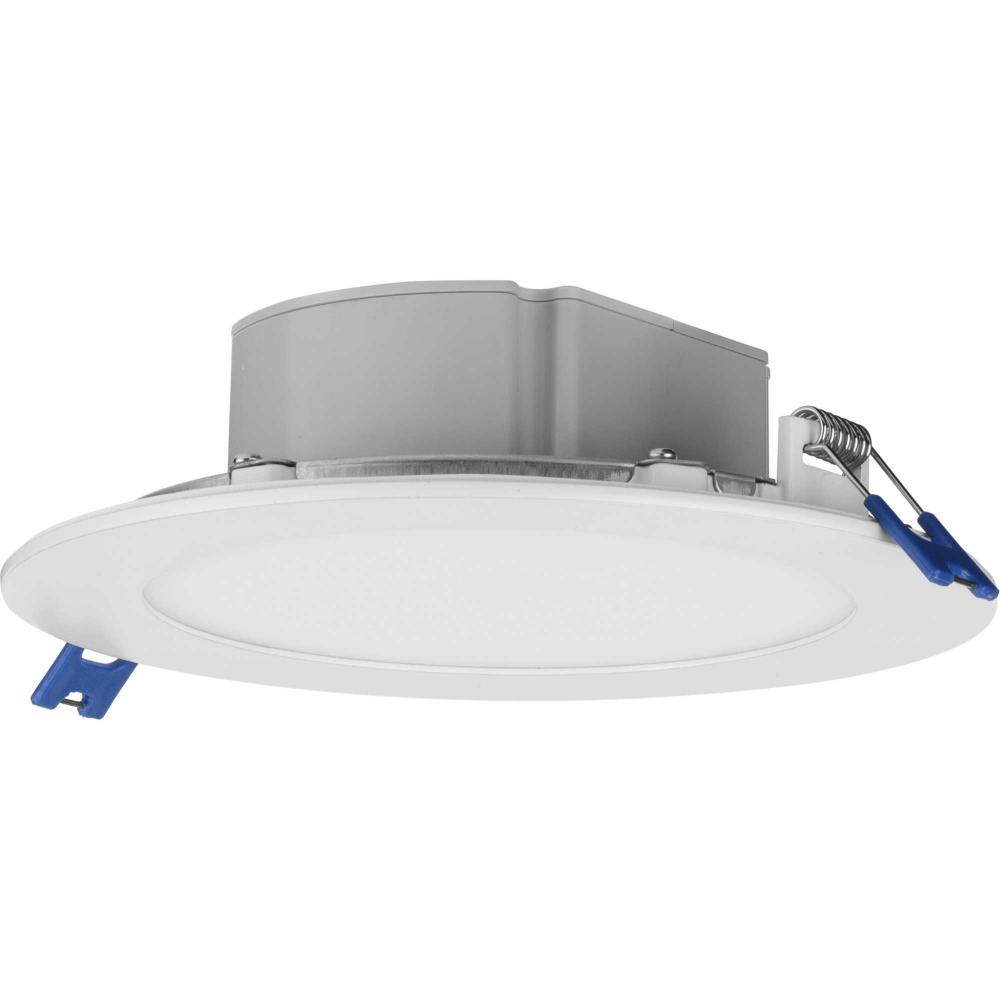

With a slim profile and the latest LED technology, the 6-inch Everlume Recessed Downlight offers smooth, even 3000K illumination to homes and commercial spaces. Its edge-lit surface delivers low glare, 12W, 925 lumen light without dark spots from its polycarbonate lens and is dimmable using ELV or TRIAC dimmers. Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings. An attached J-Box provided with quick connects, eliminates the need for an additional recessed housing. Additionally, spring clips ensure a secure flush mount to the ceiling surface. Easily install into 6-inch openings in new construction and remodel ceiling applications. This versatile downlight is ASTM E283 Air Tight Rated, JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Title 24

Wet Rated

Prop 65

Voltage:

100-120

Lumens:

450-800

Mount Type:

Flush Mount

Kelvin:

2501-3000

Location Rating:

Wet Rated

Wattage:

12w

Refinement Options

Category:

Recessed

Finish:

Satin White

Style:

Utilitarian

Option:

Prop 65

Title 24

Wet Rated

Family:

Everlume

Voltage:

120 VAC

Number of Bulbs:

1 Bulbs

Bulb Hours:

50000

Bulb Type:

LED

Kelvin:

3000

Keyword(s):

Bathroom, Bedroom, Bonus Room, Garage, Great Room, Kitchen, Laundry, Living Room, Sitting Room, Utility

Length:

7.17 in

Lumens / Light Output:

925 lm

Material:

Aluminum, Steel

Ship Carton Height:

7.72

Ship Carton Length:

7.4

Ship Carton Width:

2.64

Ship Weight:

0.99

Warranty:

5 Years Limited Warranty

Weight:

1.21

Americans with Disabilities Act:

Yes

Base Type:

Integrated

Bulb CRI:

Bulb Included:

Yes

Bulb Wattage:

12 W

Can be Mounted Up or Down:

Color:

White

Convertible Fixture Includes Both Mounts:

Country of Origin:

Dark Sky:

Dimming:

ELV/Reverse Phase;Triac/Forward Phase

Dimming Range:

Dims to 10% Brightness

Energy Efficient:

Yes

Energy Star:

Finish Type:

Painted

Frequency Rating:

60 Hz

Lamp Type Basic:

Solid State

Lumens per Watt:

Mount Location:

Ceiling Flush/Recessed

Post Top Fits Standard:

Prop 65:

View

Quick Link Connector:

Safety Rating:

cETLus Approved

Starting Temperature Minimum:

-25 °C

Title 24:

Yes

Wet Rated:

Yes

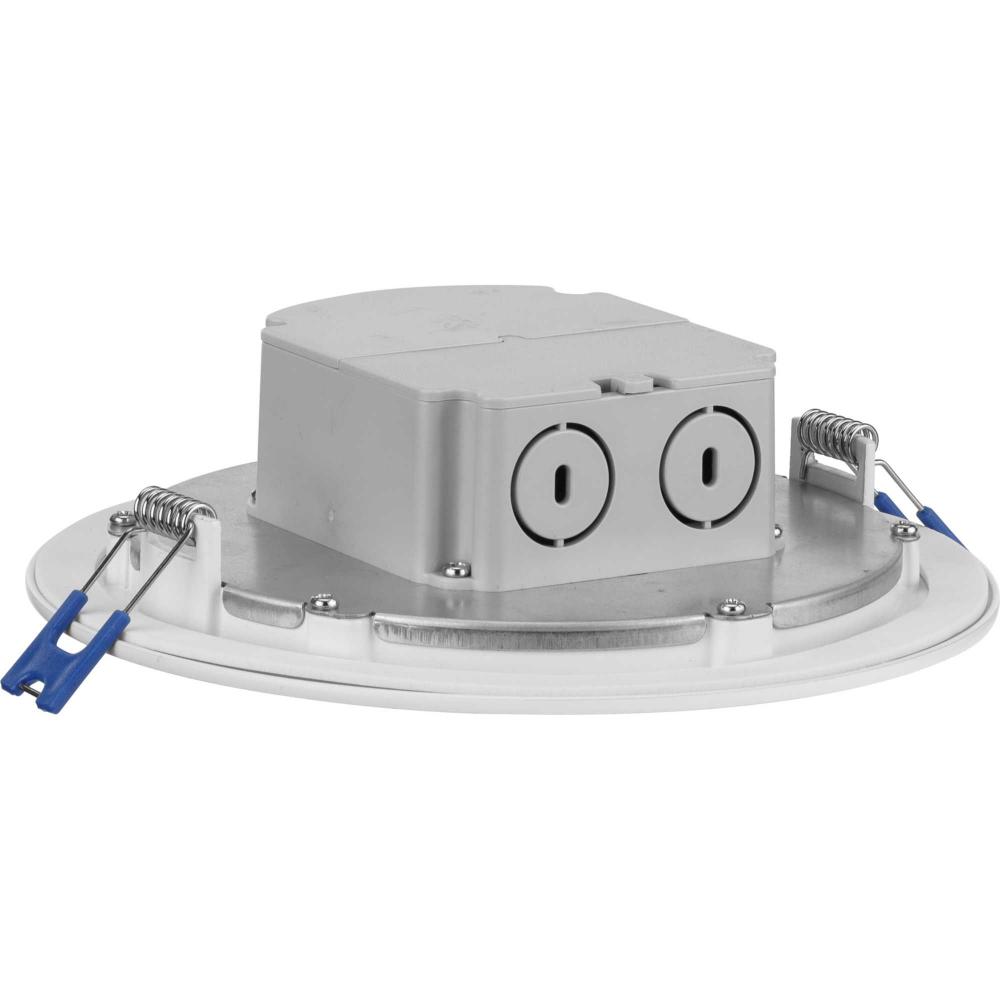

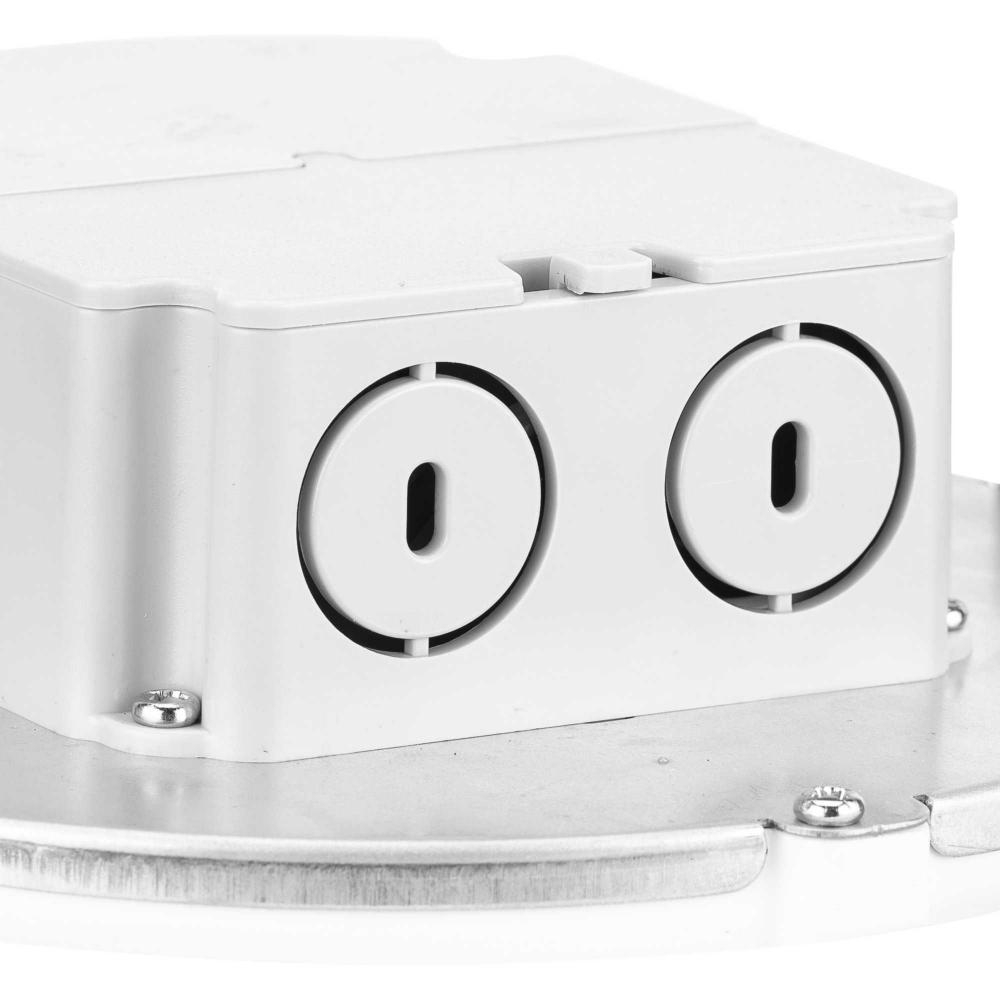

An attached J-Box provided with quick connects, eliminates the need for an additional recessed housing.

Edge-lit surface delivers glare-free illumination to low clearance, new construction and remodel, ceiling applications residential and commercial settings

Everlume easily mounts to ceilings in indoor rooms including bathrooms, bedrooms, bonus rooms, garages and sitting rooms and outdoor settings like porches and patios

Includes installation instructions and mounting hardware for a quick, easy installation

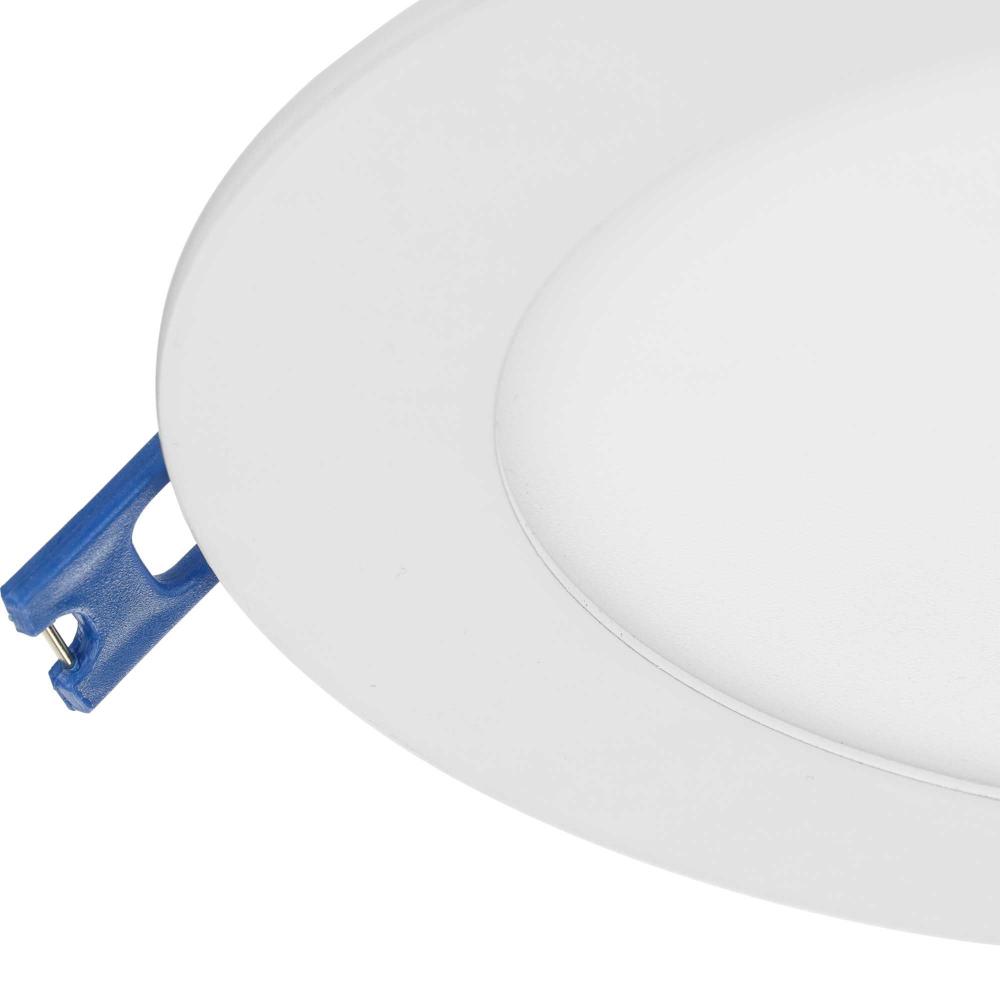

Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings

Its edge-lit surface delivers low glare, 12W, 925 lumen, 3000K light without dark spots from a polycarbonate lens and is dimmable using ELV or TRIAC dimmers

Measures 7.165 in. Dia x 1.815 in. H

The trim features a gasket to close off the ceiling opening and spring clips ensure a secure flush mount to the ceiling surface.

This versatile downlight is ASTM E283 Air Tight Rated, JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.

Warranty: Our 5-Year Limited Warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support

Manufacturer Info

Manufactured By:

Progress
