Product Overview

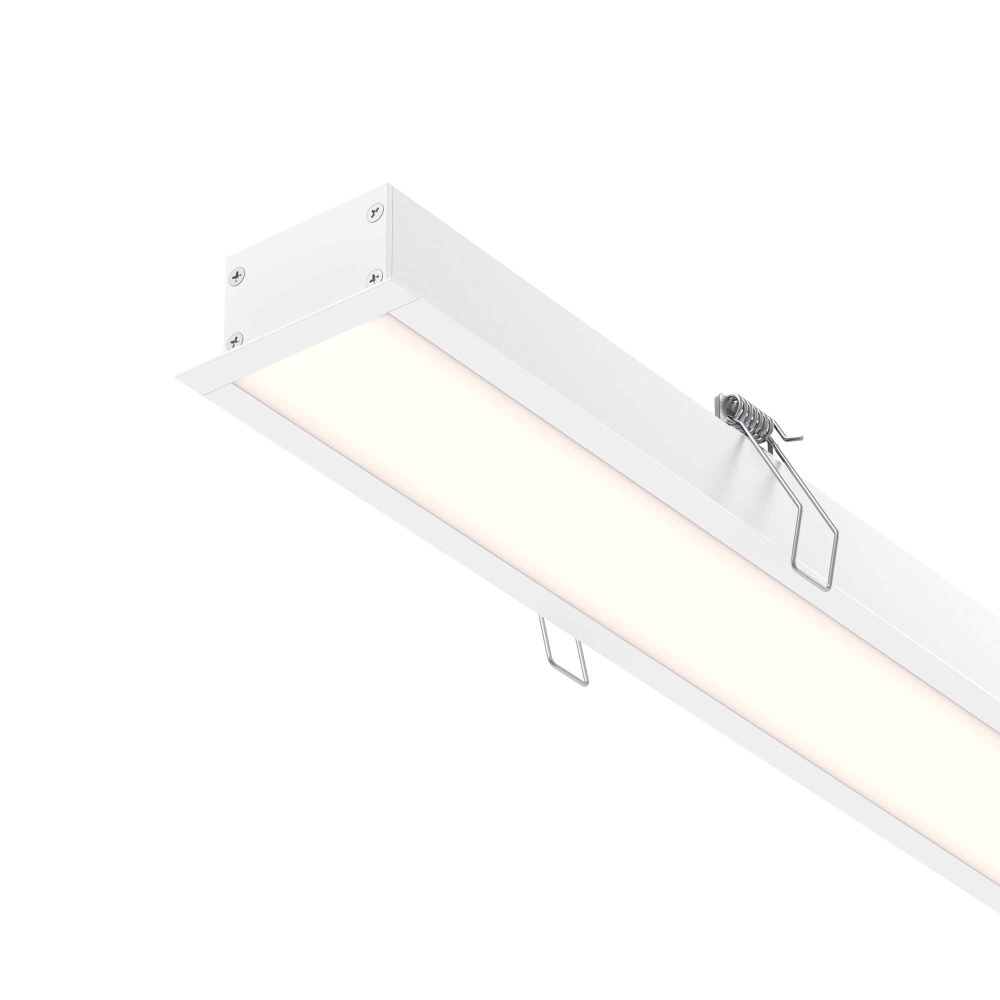

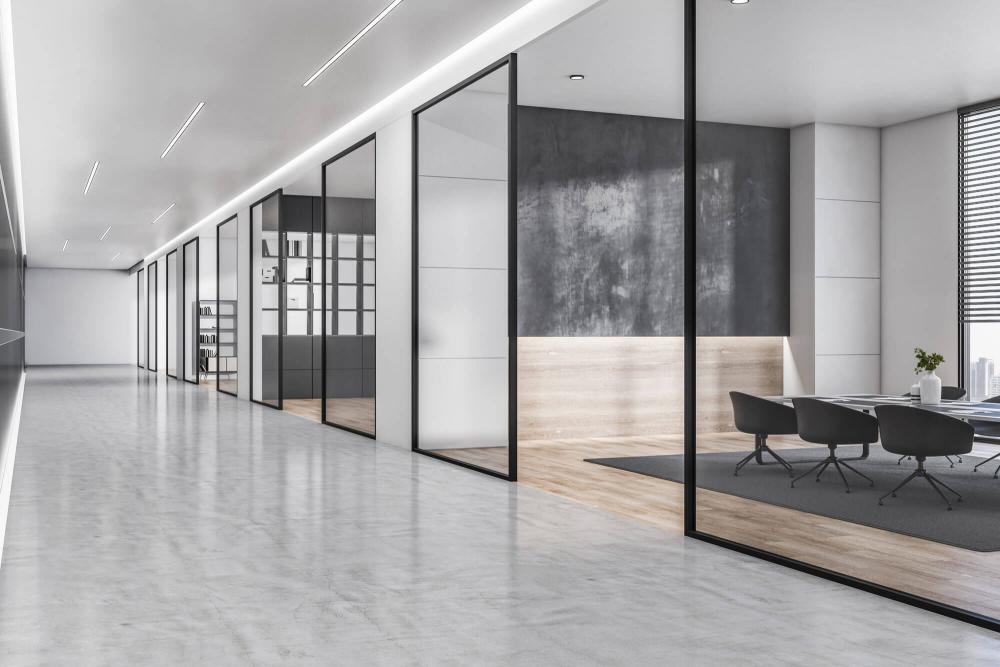

The Boulevard series, an architectural recessed lighting channel that can be installed in a wide range of commercial and residential environments. Add depth to ceiling planes with a visible separation, or seamlessly daisy-chained to create dramatic effects.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Energy Star

Title 24

Outdoor

Wet Rated

Dry Rated

Voltage:

100-120

Lumens:

1101-1600

Kelvin:

2501-3000

Location Rating:

Wet Rated

Wattage:

20w

Refinement Options

Category:

Recessed

Subcategory:

Linear

Finish:

White

Family:

Boulevard

Voltage:

120-277-347 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Harmonized Codes:

9405.11.0091

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum Extrusion

Ship Carton Height:

3.7

Ship Carton Length:

25

Ship Carton Width:

4.1

Ship Weight:

2.75

Warranty:

5 Years Limited

Air-Tight (ASTM E283--4):

Yes

Beam Angle:

105°

Bulb CRI:

90

Country of Origin:

China

Delivered Lumens:

1725

Dimmer Type:

0-10V

Energy Star:

Yes

IC Certification:

Yes

Indoor:

Yes

IP Rating:

IP20

JA8:

Yes

Lens Material:

Frosted PC

Location Rating:

Dry Rated

Max Wattage:

20 W

Maximum Working Temperature:

40°C

Minimum Working Temperature:

-20°C

Safety Rating:

ETL Approved

Shipping Master Height:

12

Shipping Master Length:

25

Shipping Master Quantity:

6

Shipping Master Weight:

21

Shipping Master Width:

8.7

Title 24:

Yes

Wiring:

Hardwired

108° beam spread

Every fixture includes a junction box with integrated dimmable driver

Ideal operating temperature: -20° to 40° C

Switch-selectable CCT: 2700K/ 3000 K/3500 K/4000 K/5000 K

Manufacturer Info

Manufactured By:

Dals
