Product Overview

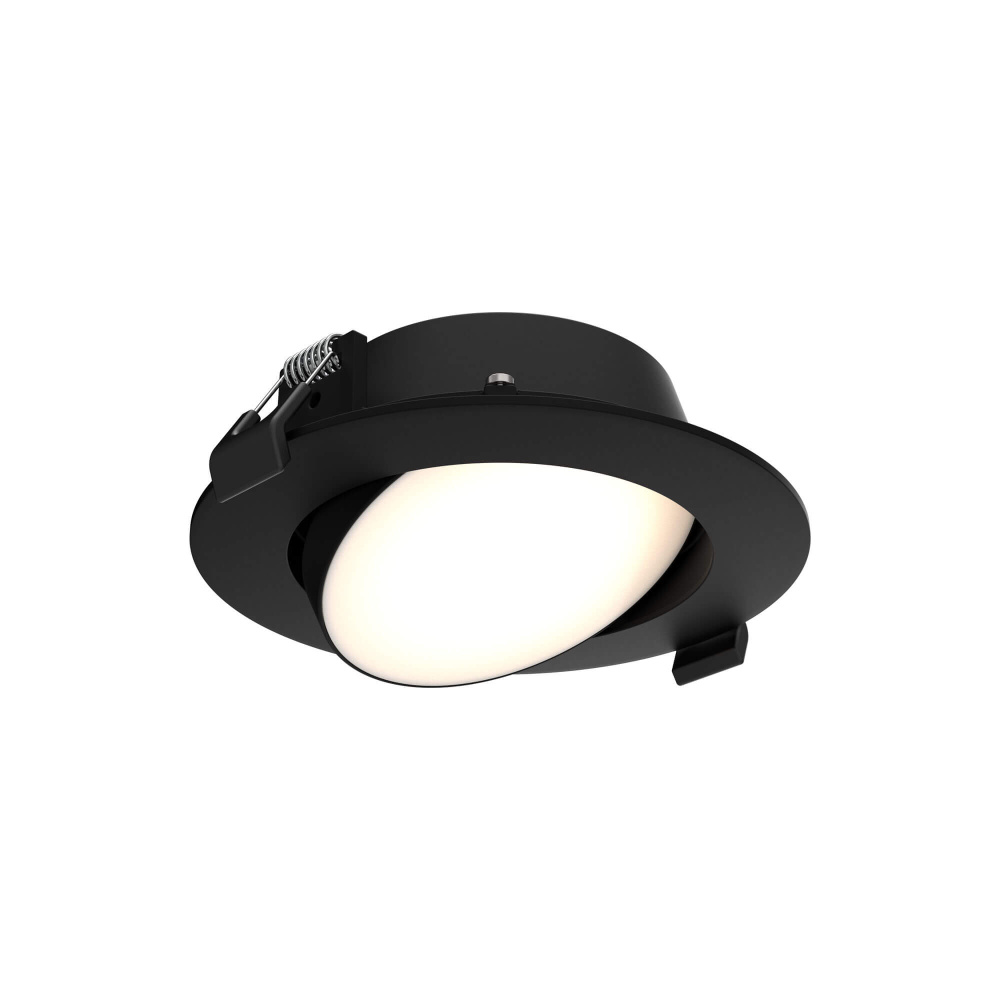

The Fusion is a slim gimbal recessed panel with 5CCT, offering advanced lighting flexibility for precise illumination. Its gimbal design allows users to direct light as needed, and the 5CCT feature provides color temperature versatility, making the Fusion an ideal choice for both residential and commercial applications.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Energy Star

Title 24

Outdoor

Wet Rated

Refinement Options

Category:

Recessed

Subcategory:

Directional

Finish:

White

Family:

Fusion

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

3.6

Ship Carton Length:

7.5

Ship Carton Width:

7.4

Ship Weight:

1.75

Warranty:

5 Years Limited

Weight:

1.5

Air-Tight (ASTM E283--4):

Yes

Beam Angle:

110°

Bulb CRI:

90

Country of Origin:

China

Delivered Lumens:

1050

Dimmer Type:

Triac/ELV

Energy Star:

Yes

IC Certification:

Yes

Indoor:

Yes

JA8:

Yes

Lens Material:

PC

Location Rating:

Wet Rated

Max Wattage:

13 W

Maximum Working Temperature:

40°C

Minimum Working Temperature:

-25°C

Outdoor:

Yes

Safety Rating:

ETL Approved

Shipping Master Height:

12.25

Shipping Master Length:

16

Shipping Master Quantity:

12

Shipping Master Weight:

20

Shipping Master Width:

15.5

Title 24:

Yes

Wiring:

Hardwired

110° beam angle

25° tilting, 360° rotation

Air-tight certified as per ASTM E283-04

IC certification (suitable for direct contact with insulation)

Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K

Manufacturer Info

Manufactured By:

Dals
