Part Number: 65/885 / Vendor ID #: 4800

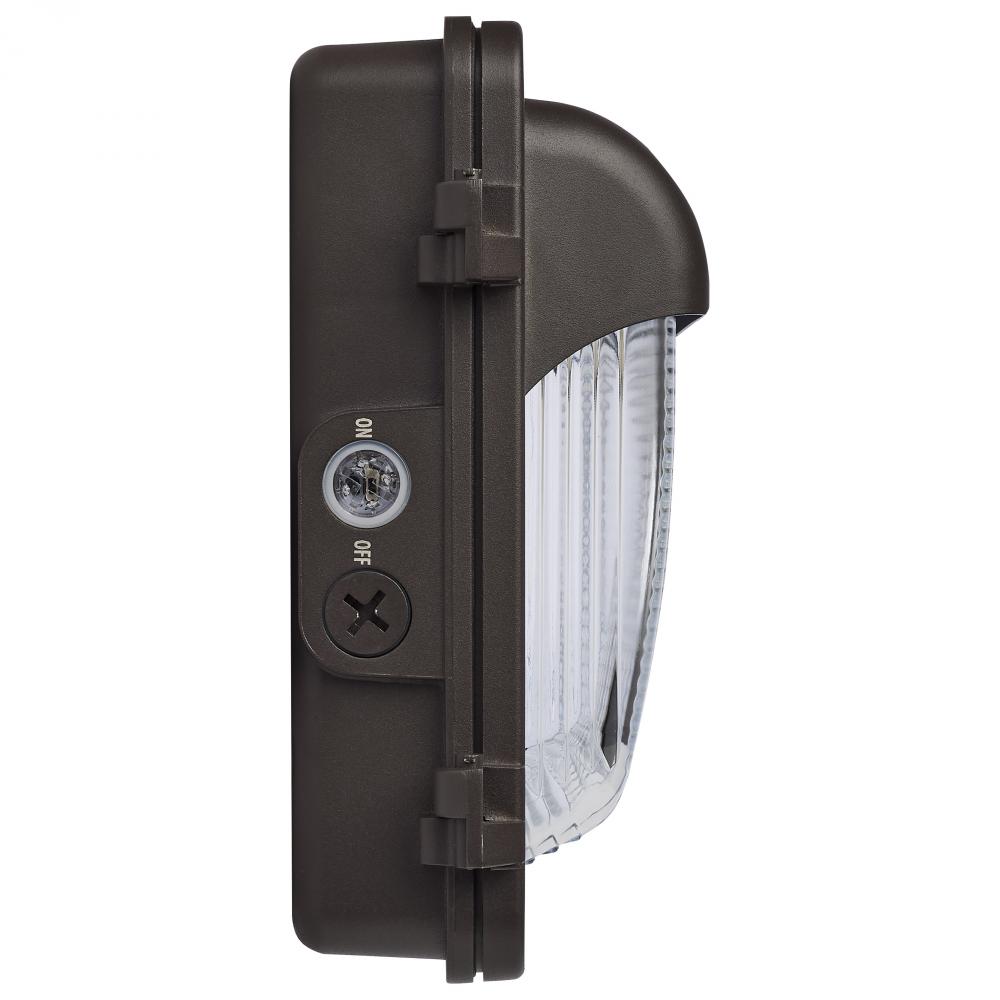

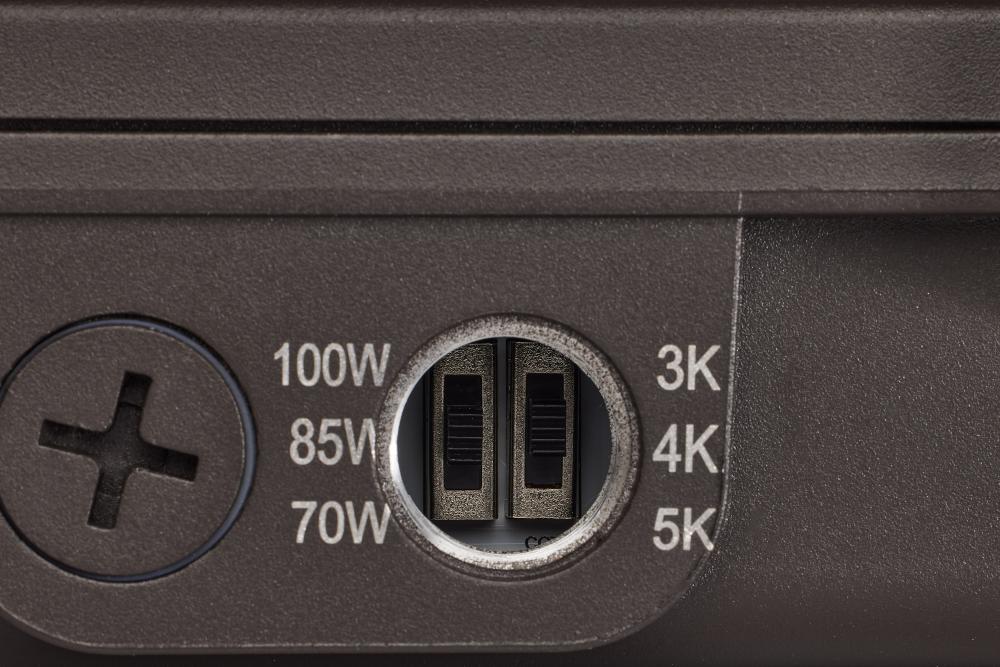

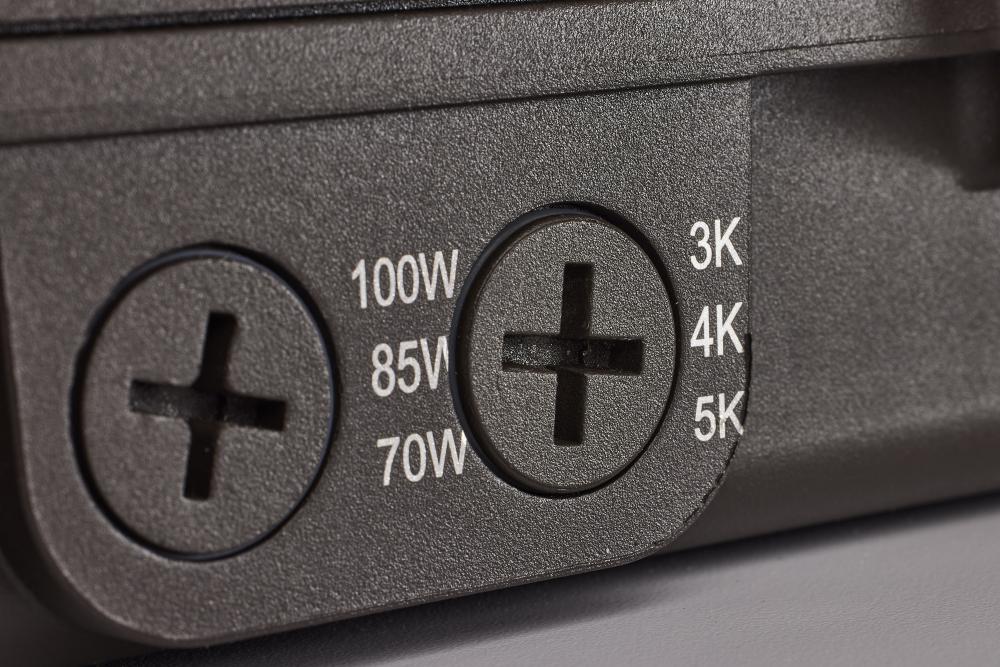

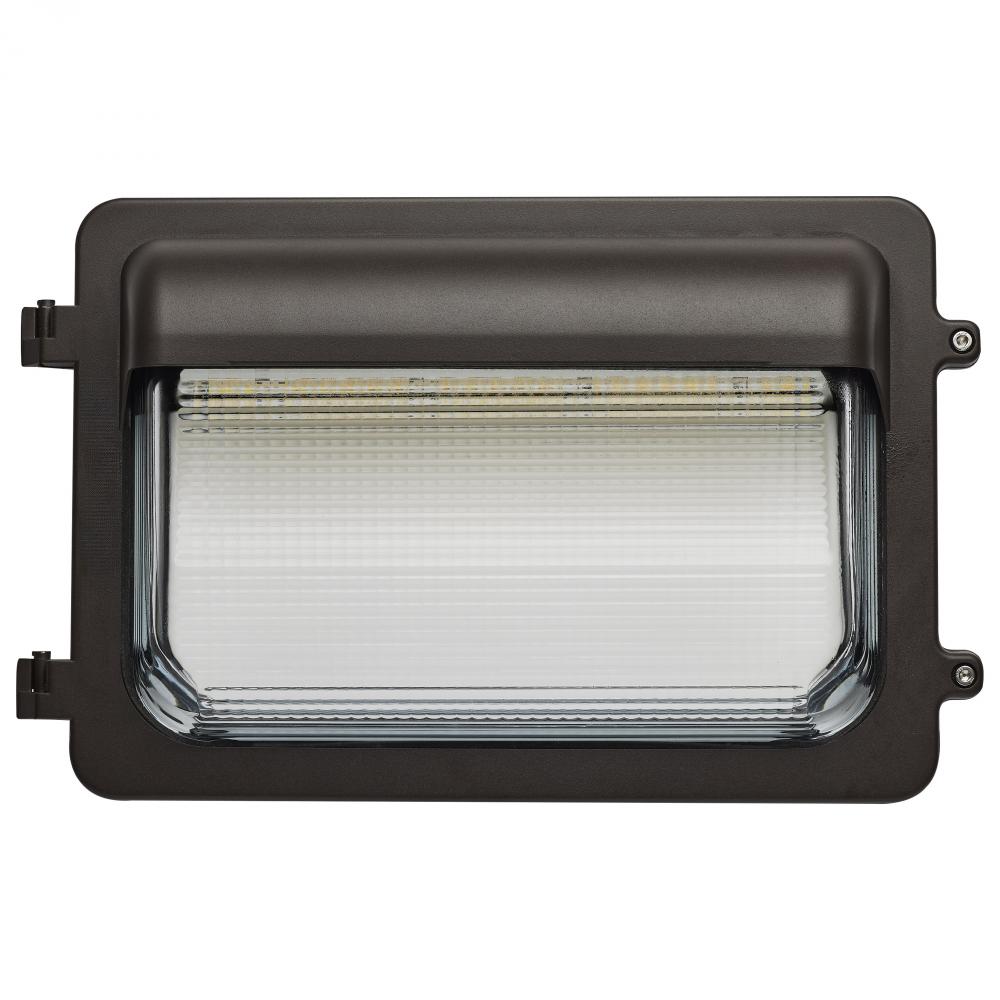

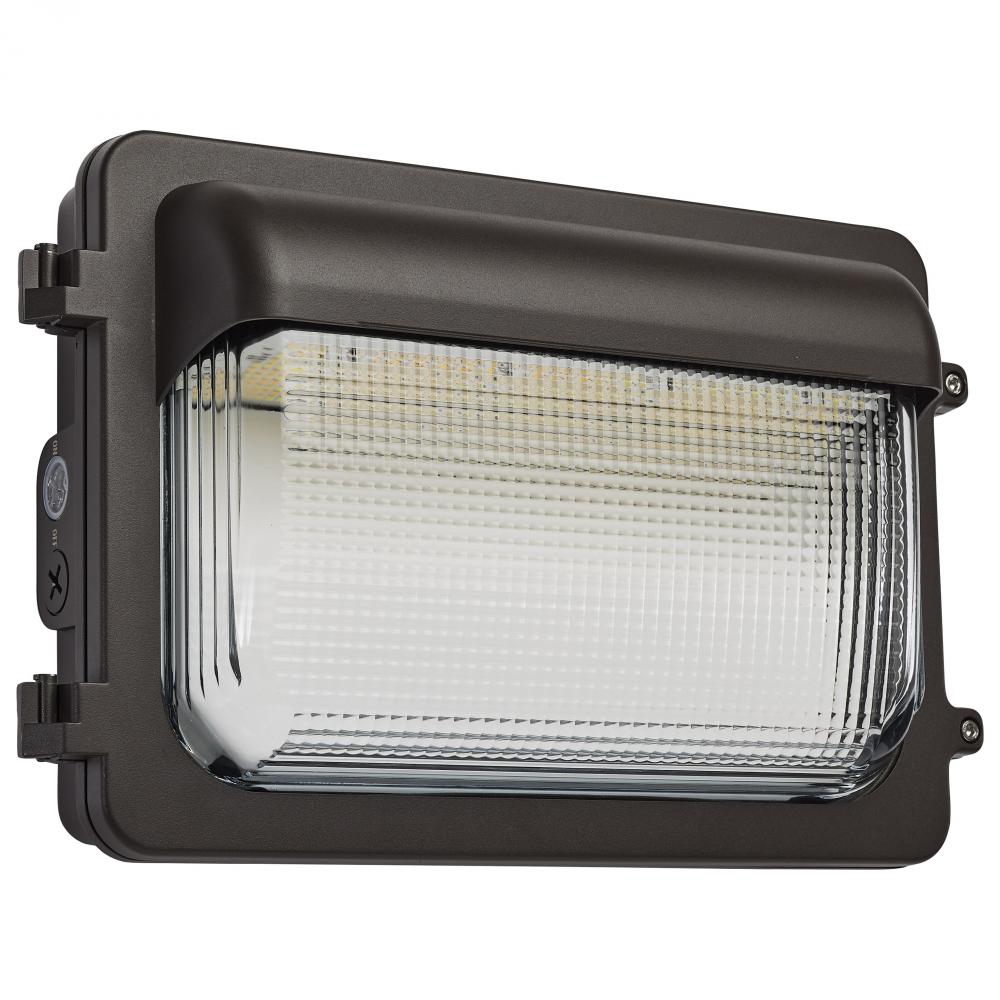

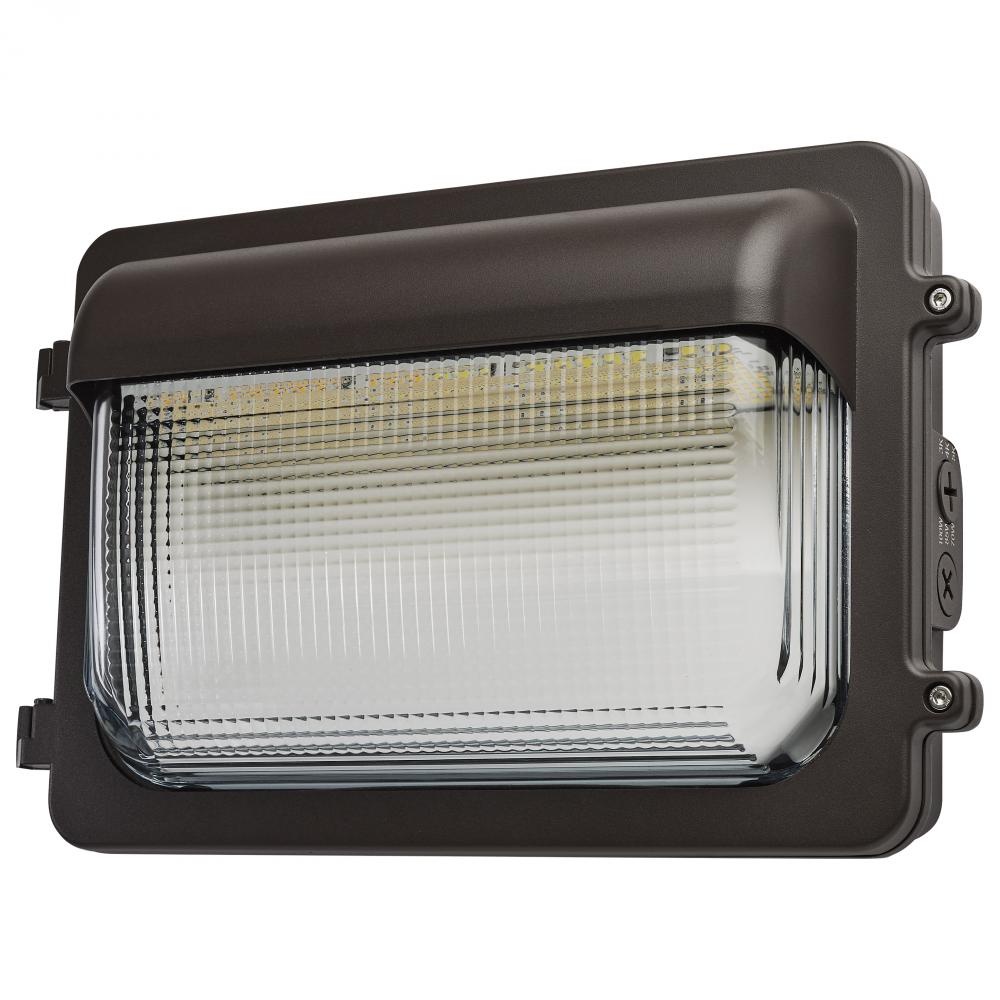

LED Low Profile Wall Pack; Wattage 70/85/100W and CCT 3K/4K/5K Selectable; Photocell; Dimmable;
by Nuvo
$284.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Dimensions
Height: 9.76"
Width: 15.55"
LED Low Profile Wall Pack; Wattage 70/85/100W and CCT 3K/4K/5K Selectable; Photocell; Dimmable; Bronze Finish
Category:
Exterior
Subcategory:
Wall Lights
Finish:
Bronze
Option:
LED
Prop 65
Category:
Wall Pack
Sub Category:
Standard
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
5.25
Each Length:
17.5
Each Width:
5.25
Lumens:
8817L-12941L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.583-0.253/0.708-0.307/0.833-0.361A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
90
B_U_G_Rating:
B1-U3-G5
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Thailand
CRI:
80
Depth:
4.21
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube:
0.2791
Each Quantity:
1
Efficacy:
125.96/127.99/129.41 LPW
FCC Compliant:
Yes
Feature 1:

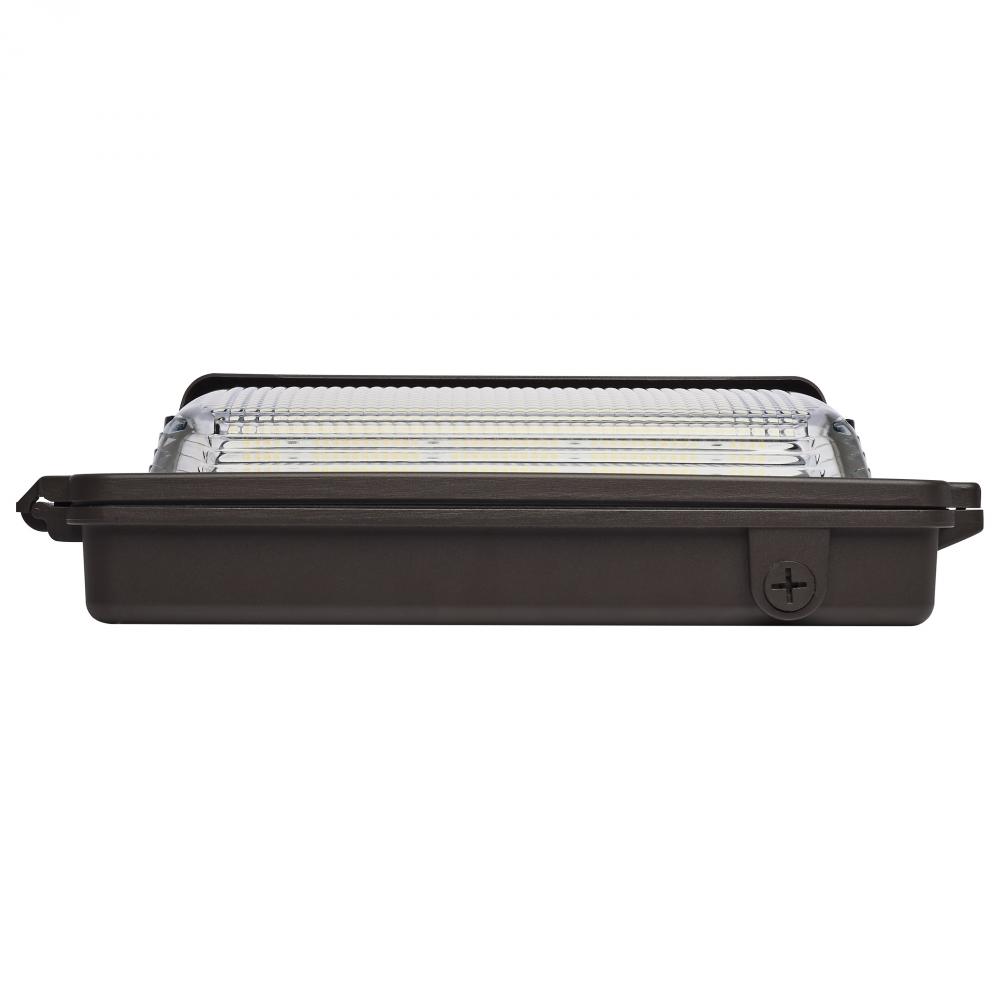

Low Profile Extends less than 4.25 inches
Feature 2:

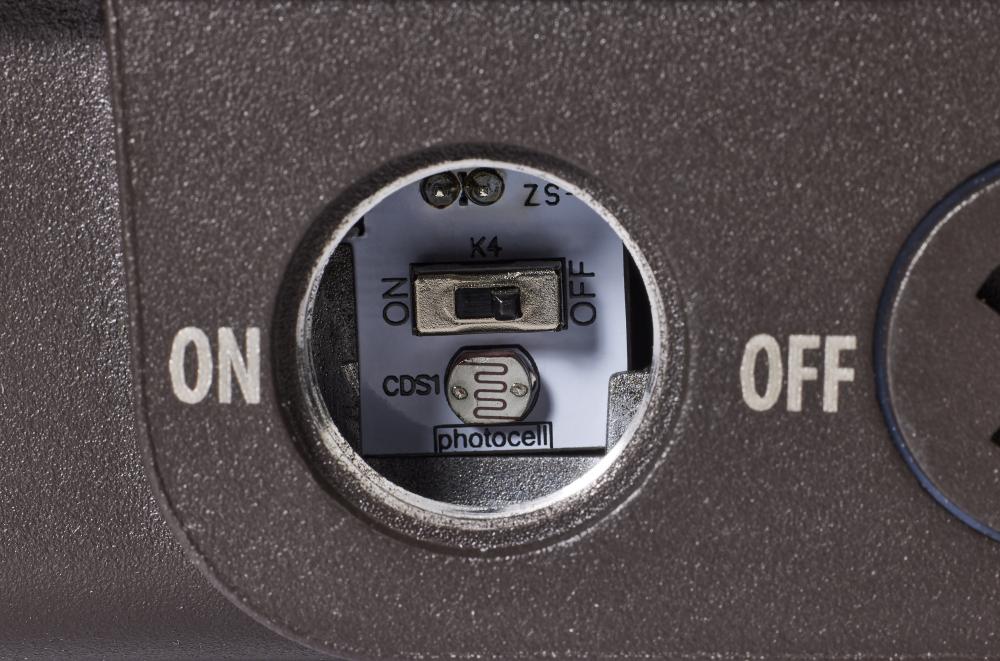

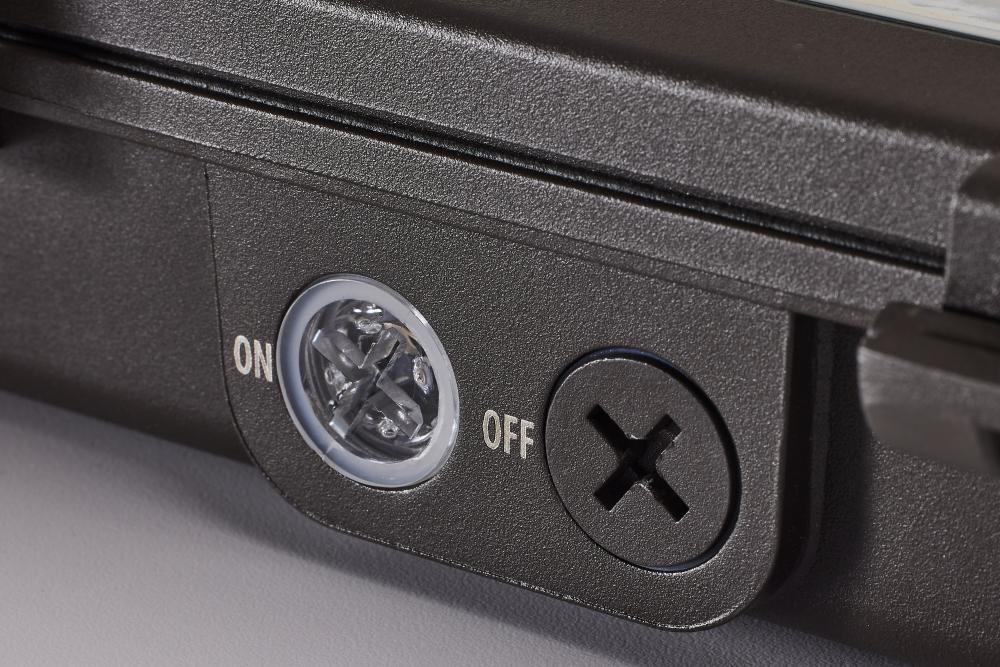

Integrated Bypassable Photocell
Feature 3:

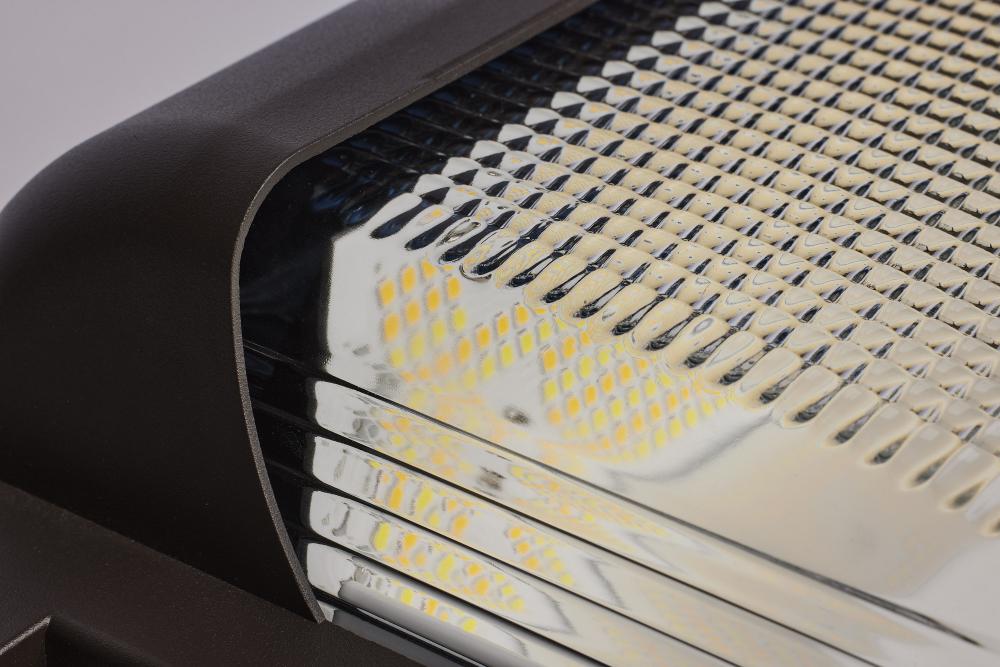

IK08 Vandal Resistant Glass Lens
Feature 4:
Wet Location
Feature 5:
0-10V Dimmable Down to 10 percent
Feature 6:
IP65 Rated
Feature 7:
DLC Premium
Feature 8:
Bronze Finish
Finish Family:
Bronze
Fixture shape:
Trapezoid
Has Driver:
Yes
HID Equiv:
175W/265W/350W
Impact Rating (IK):
IK08
Incandescent Equivalent:
550W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:

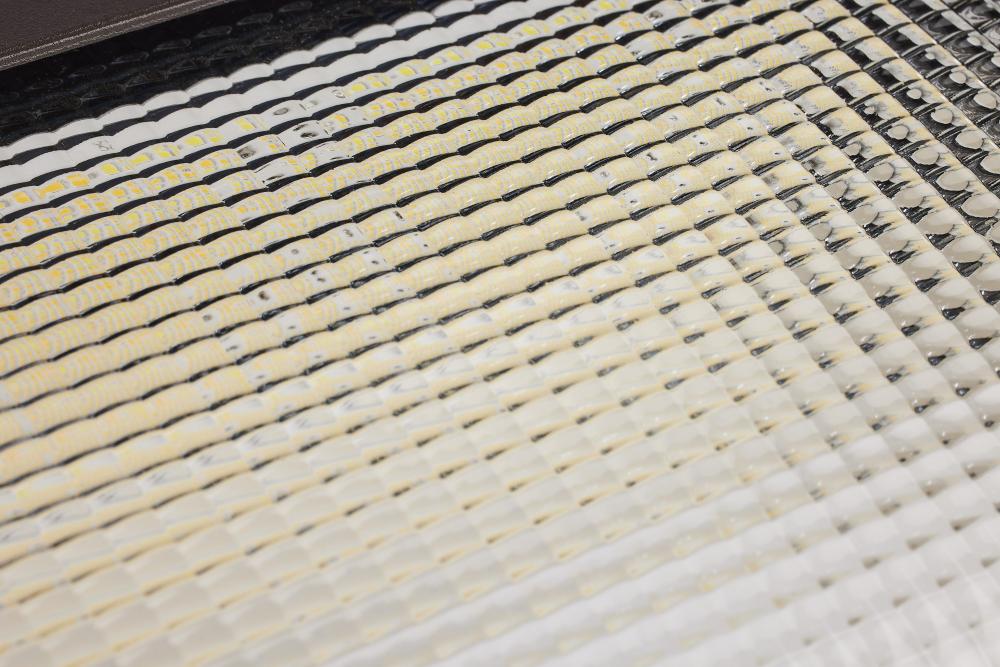

Borosilicate Glass
Long Description:
SATCO|NUVO's 65-885 LED Low Profile Wall Pack is a versatile fixture that offers field-selectable settings (70-Watt/85-Watt/100-Watt) with 3 CCT options (3000K, 4000K, 5000K), allowing you to tailor the lighting to your needs. Its sleek and durable des
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Kraft Box
Photocell:
Has Photocell
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED Low Profile Wall Pack is a versatile fixture that offers field-selectable settings, allowing you to tailor the lighting to your needs. Its sleek and durable design, featuring an IK08 vandal resistant glass lens and integrated bypassabl
Safety Listing:
cETLus - Listed
Short Description:
LED LOW PROFILE WALL PACK
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Total Harmonic Distortion:
<20%

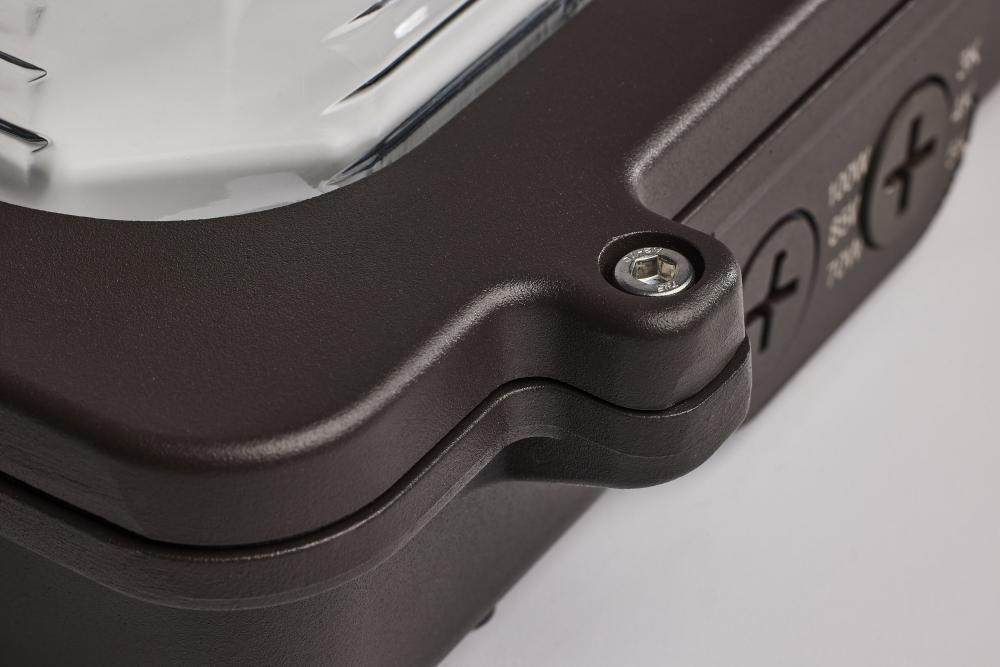

Wattage Selectable:
Yes
Weight Lb.:
9.26
Manufactured By:
Nuvo
