Product Overview

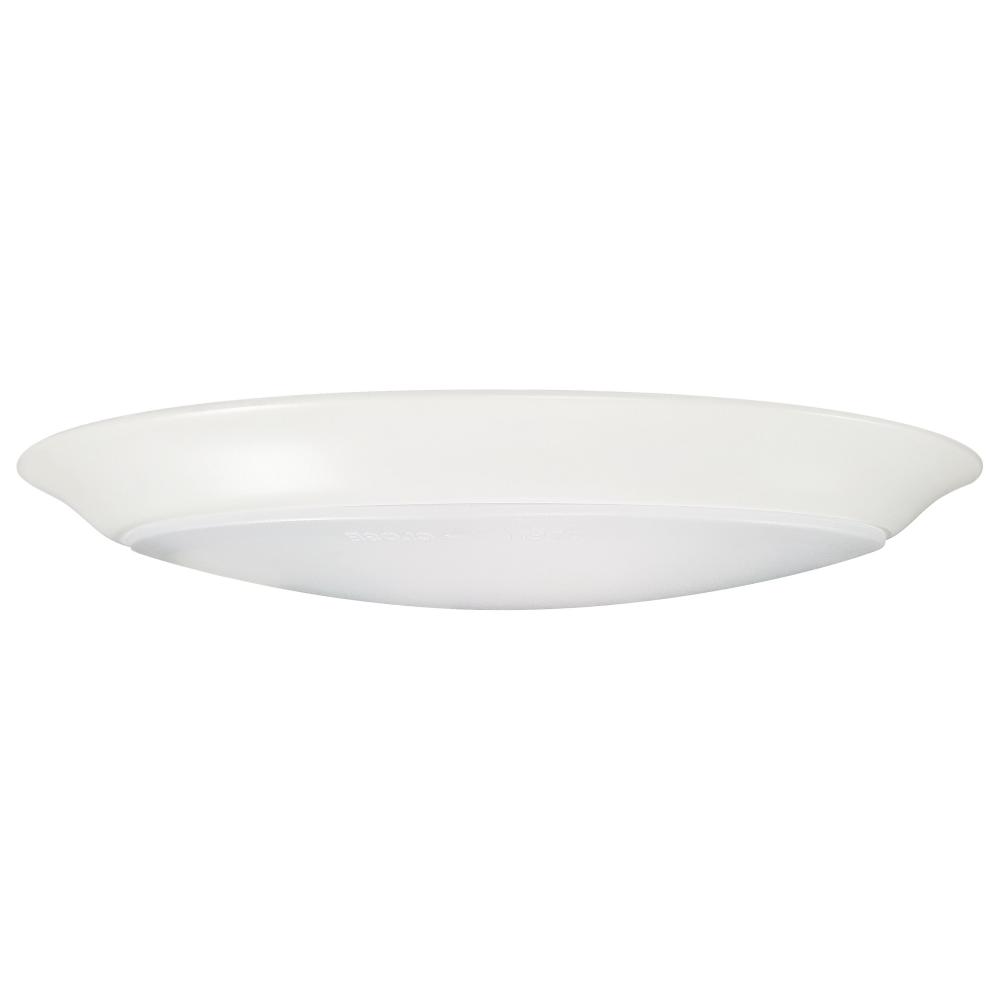

9.5 Watt; 10 Inch LED Disk Light; White Finish; CCT Selectable

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Option:

Energy Star

LED

Prop 65

Voltage:

100-120

Lumens:

450-800

Refinement Options

Category:

Close-to-Ceiling

Sub Category:

LED Disk

Style:

Contemporary

Bulb Volts1:

120V

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Diameter:

9.49

Dimmable:

Yes-Dimmable

Each Height:

9.84

Each Length:

9.84

Each Width:

1.69

Lumens:

560L-700L

Tariff Code:

9405.11.8020

Warranty:

5 Year Limited - Fixtures

Amps:

0.079A

ANSI Base:

Integrated

Beam Angle:

110

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Connection:

Hardwire

Country Of Origin:

Malaysia

CRI:

93

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase

Each Cube:

0.09470000000000001

Each Quantity:

1

Efficacy:

58.95/66.32/73.68 LPW

ES Category:

Other

ES Unique ID:

ESID-2507680

FCC Compliant:

Yes

Feature 1:

5 CCT Selectable

Feature 2:

NEC | Clothes Closet Rated

Feature 3:

93 CRI

Feature 4:

Dimmable

Feature 5:

Wet location rated

Feature 6:

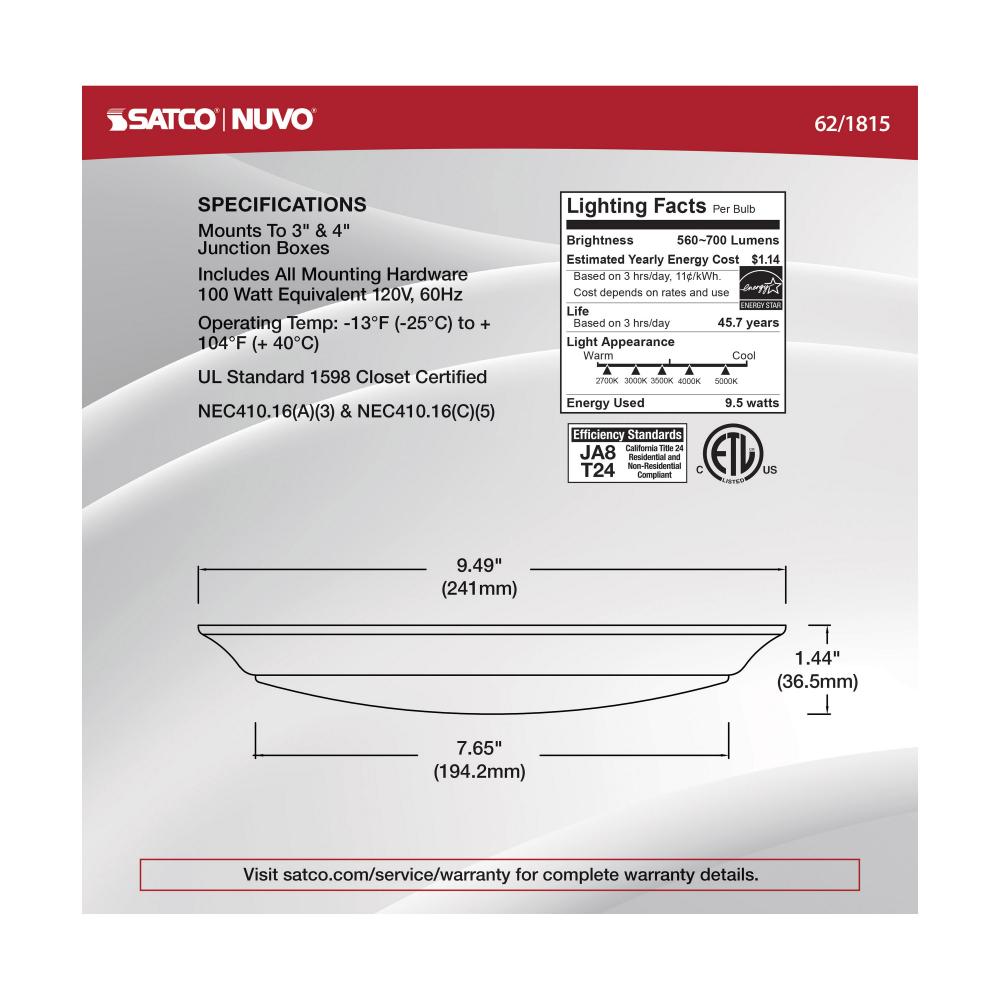

9.49 inches Diameter x 1.44 inches Height

Feature 7:

White Finish

Finish Family:

White

Fixture shape:

Round

Has Driver:

No

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Keyhole Slots

IOT Enabled:

No

JA8 Compliant:

Yes

Lens Finish:

White

Lens Material:

Acrylic

Long Description:

Introducing SATCO|NUVO 62-1815, a 10-inch customizable lighting solution with CCT selectable options from 2700K to 5000K. This 9.5-watt fixture comes in a white finish and features a high CRI of 93 for exceptional color accuracy. It offers 2.5kV surge prot

Material:

Steel

Mounting Procedure:

Ceiling

NEC Compliance:

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

NSF Approved:

No

Operating Frequency:

60Hz

Operating Temp:

-25C (-13F) to +40C (+104F)

Pack Type:

Color Box

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

68

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Introducing SATCO|NUVO customizable lighting solutions with a wide range of options from 2700K to 5000K. Available in 7-inch and 10-inch sizes, they offer a high CRI of 93 for exceptional color accuracy. They offer 2.5kV surge protection and are rated for

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

10" LED 9.5W DISK LIGHT WHITE

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

No

Title 24 Compliant:

Yes

Wattage Selectable:

No

Weight Lb.:

0.86

Manufacturer Info

Manufactured By:

Nuvo
