Product Overview

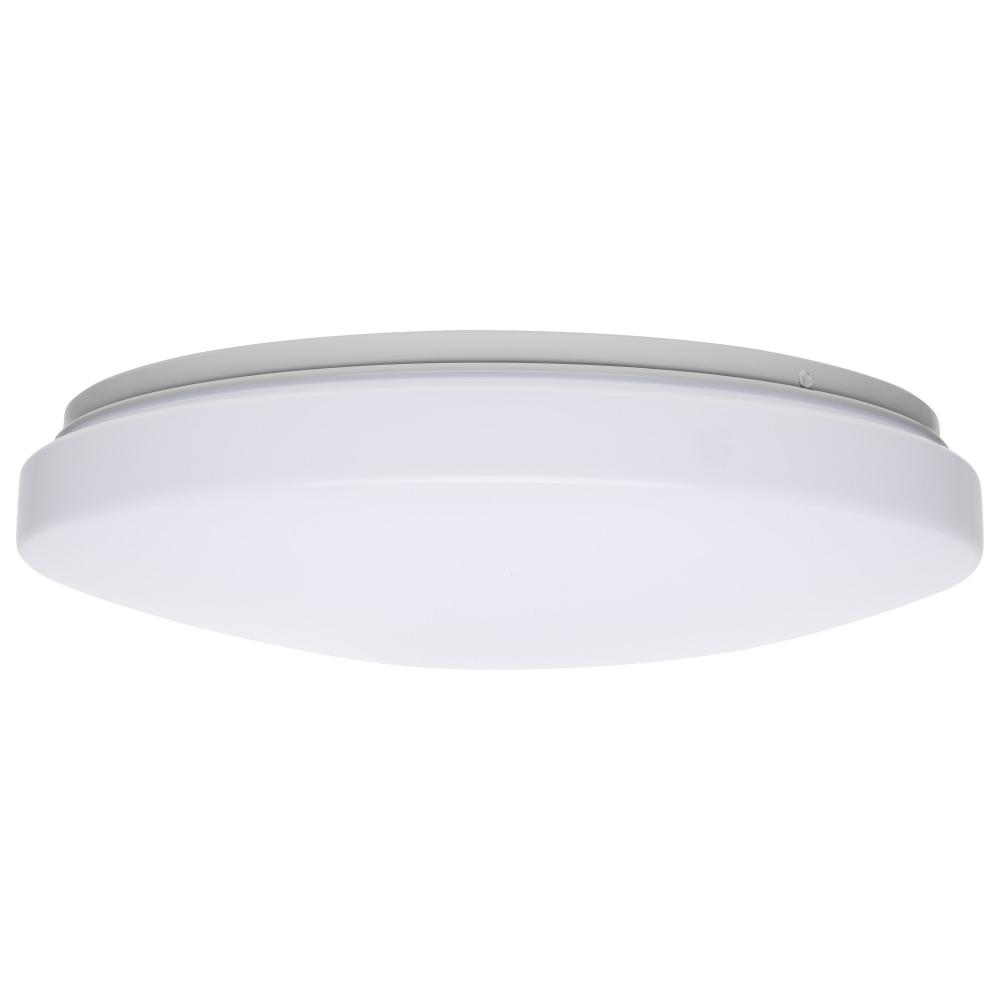

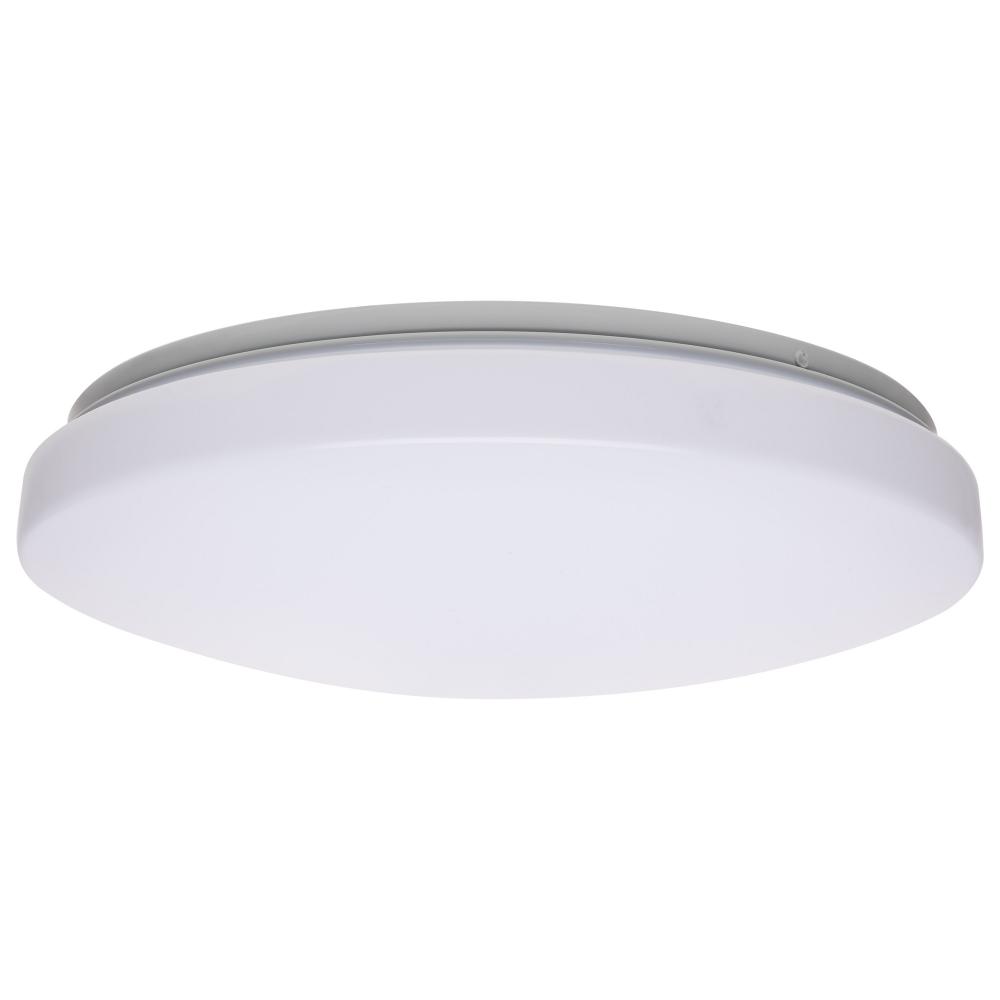

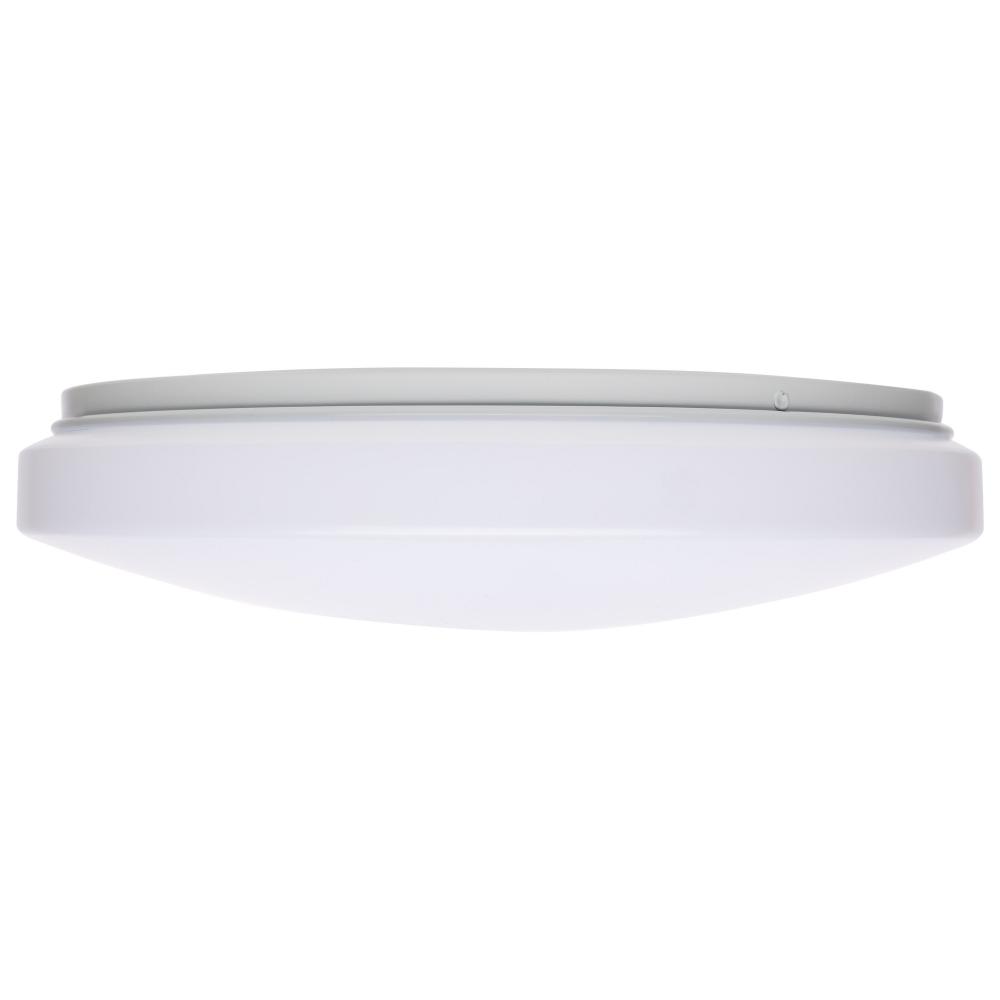

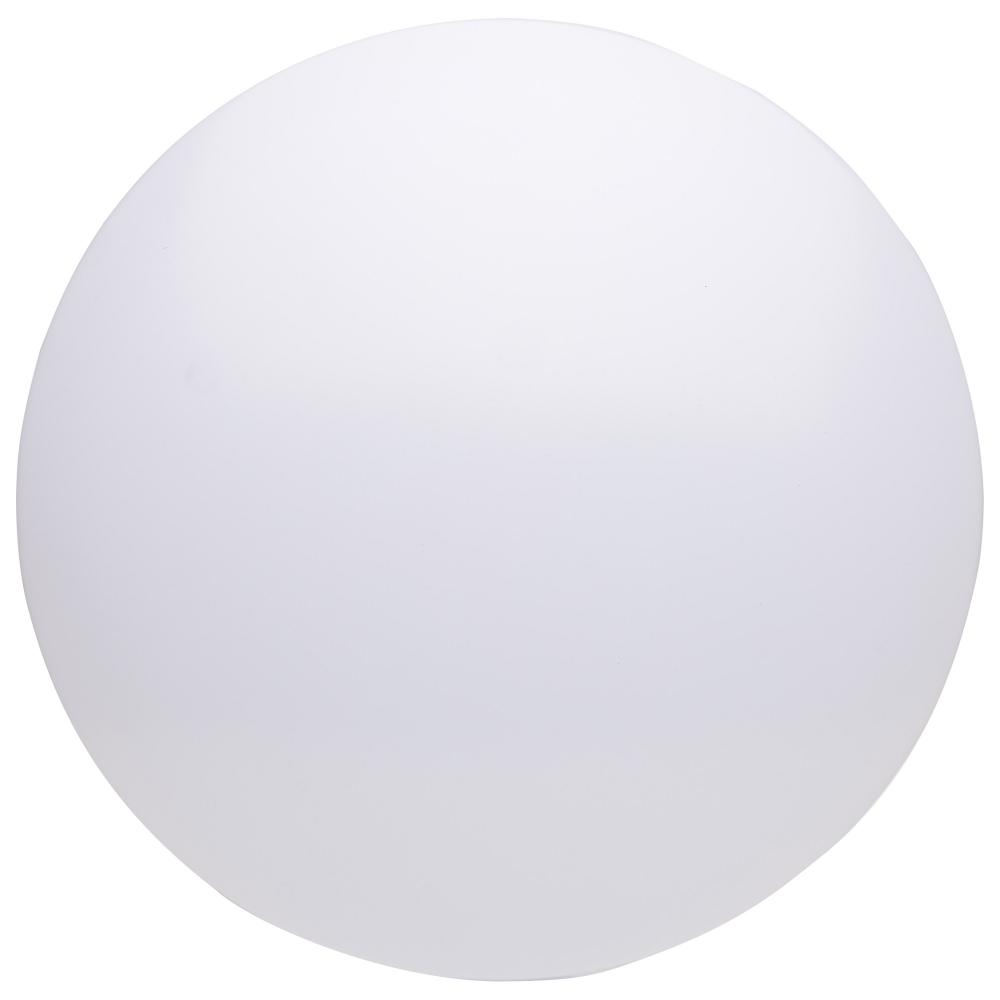

14 Inch LED Cloud Fixture 0-10V Dimming; CCT Selectable

Standard Information

Category:

Flush Mounts

Subcategory:

Bowl Flush Mounts

Option:

Energy Star

LED

Prop 65

Lumens:

1101-1600

Kelvin:

4001-4500

Refinement Options

Category:

Close-to-Ceiling

Sub Category:

Flush

Style:

Contemporary

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Diameter:

14

Dimmable:

Yes-Dimmable

Each Height:

15.75

Each Length:

3.74

Each Width:

15.75

Lumens:

1450L/1550L/1450L

Tariff Code:

9405.11.8010

Warranty:

5 Year Limited - Fixtures

Amps:

0.167-0.722A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

110

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Connection:

Hardwire

Country Of Origin:

China

CRI:

90

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Each Cube:

0.5369

Each Quantity:

1

Efficacy:

72.50/75.00/77.50 LPW

ES Category:

Ceiling Mount

ES Unique ID:

ESID-2394226

FCC Compliant:

Yes

Feature 1:

3 CCT Selectable (3000K, 4000K, 5000K)

Feature 2:

Dual Voltage 120V/277V

Feature 3:

90 CRI

Feature 4:

Damp location rated

Feature 5:

Durable PMMA Cover

Feature 6:

Slim Refined Style

Finish Family:

White

Incandescent Equivalent:

100W

Indoor Outdoor:

Indoor

IOT Enabled:

No

JA8 Compliant:

Yes

Lens Finish:

White

Lens Material:

Acrylic

Long Description:

Introducing SATCO's 62-1226, 20-watt LED Cloud Fixture, the perfect lighting solution for any high traffic common area. With its simple and refined designed, this dimmable fixture will complement any space. Featuring ColorQuick CCT selectable technolog

Material:

Steel

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Quantity In Pack:

1

R9 Value:

73

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

LED Cloud Fixtures have a simple, refined design featuring ColorQuick CCT Selectable technology for even more versatility. Available in 11 inch or 14 inch sizes with a white PMMA acrylic diffuser, these fixtures are a perfect choice for illuminating high t

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

14" ACRYLIC LED FLUSH FIXTURE

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

No

Title 24 Compliant:

Yes

Wattage Selectable:

No

Weight Lb.:

1.82

Manufacturer Info

Manufactured By:

Nuvo
