Product Overview

12 Watt; LED; Black; Barrel; Monopoint; 3000K; 36 deg. Beam Angle

Standard Information

Category:

Flush Mounts

Directional Lights

Subcategory:

Other Flush Mounts

Mono Points

Finish:

Black

Style:

Contemporary

Traditional

Modern

Option:

LED

Prop 65

Lumens:

801-1100

Kelvin:

2501-3000

Refinement Options

Category:

Close-to-Ceiling

Sub Category:

Monopoints

Style:

Modern and Contemporary

Avg Rated Hours:

30000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Dimmable:

Yes-Dimmable

Each Height:

4.75

Each Length:

5

Each Width:

5

Length:

3

Lumens:

1020L

Tariff Code:

9405.11.8020

Warranty:

3 Year Limited - Fixtures

Amps:

0.100A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

36

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

90

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Each Cube:

0.0687

Each Quantity:

1

Efficacy:

85.00 LPW

FCC Compliant:

Yes

Feature 1:

New Mono Points

Feature 2:

New Linear Track Bars

Feature 3:

Expanded Track Head Offering

Feature 4:

Customizable Accent Lighting For Low To Mid Ceiling

Feature 5:

Residential and Commercial

Finish Family:

Black

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

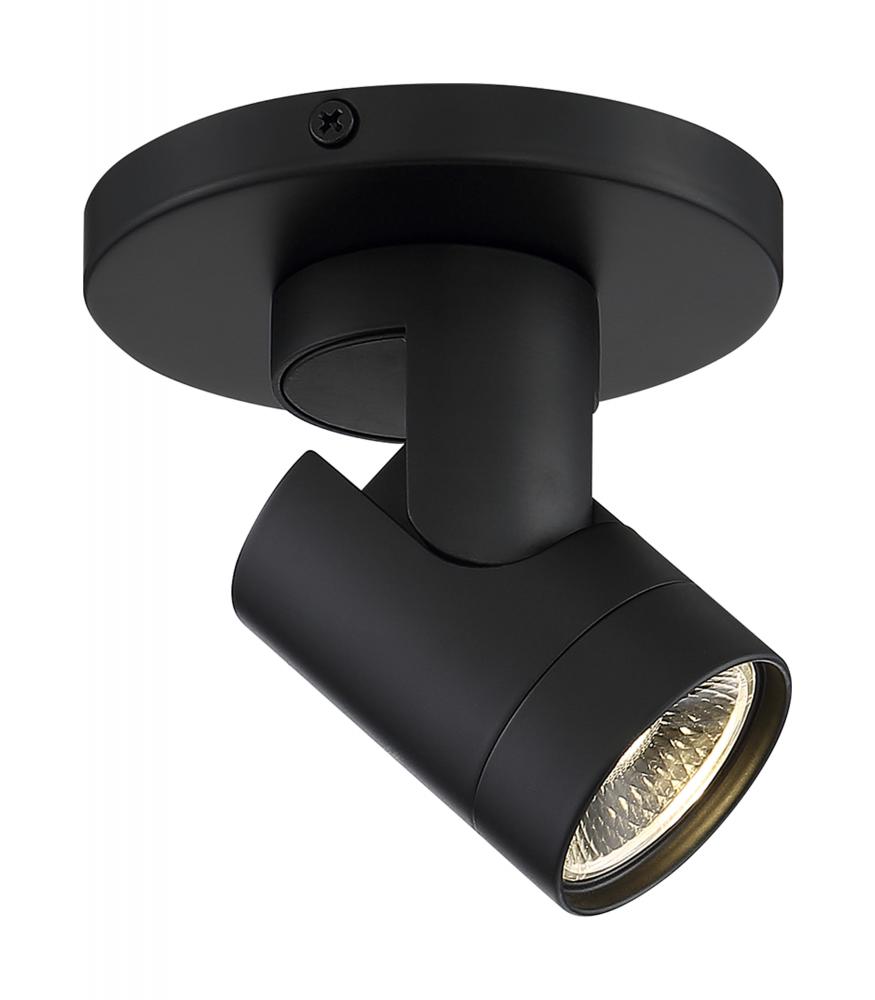

Satco's 62-1105 is a 12-watt LED monopoint spotlight which is hardwired directly to the ceiling or wall. The fixture has a barrel shape and black finish which blends with many decor styles. Its integrated LED has a warm white color temperature, and the

Material:

Aluminum

Mounting Diameter:

4.75

Mounting Height:

0.5

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

This Satco track expansion includes mono points, linear track bars and the addition of several new track heads with modern profiles and adjustable design features, offering even more versatility and new direction to our track products! These introductions

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

12W LED BARREL MONOPOINT

Temperature (CCT):

3000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Track Head Style:

Barrel

Wattage Selectable:

No

Weight Lb.:

1.08

Manufacturer Info

Manufactured By:

Nuvo
